MAESTRO-MD

Universal Premium High-End System dual-modality combining ultrasound and optoacoustics

Tomowave's Maestro-MD is an advanced medical imaging system that combines optical and acoustic technologies to provide high-resolution, real-time visualization of tissue structure and function. Designed for clinical and research applications, it enables early detection and monitoring of various diseases with unmatched precision and depth.

Precision Imaging

Revolutionizing Healthcare

TomoWave develops proprietary optoacoustic tomography and laser ultrasound systems for combined functional/molecular and anatomical imaging with applications in detection of cancer and image-guided interventions

LOIS-3D
Maestro
Symphony

MAESTRO-MD

Universal Premium High-End Dual Modality of Ultrasound combined and coregistered with optoacoustics

Clinical Applications

  1. Screening diagnostics of early-stage diseases:                                           a. vasculature and microvasculature in the liver and kidneys
     b. various heart conditions
     c. diabetic damage of microvasculature
  2. Differentiation of peripheral arteries, veins, and nerves
  3. Measurements of blood oxygenation in the vasculature, and microvasculature:
      a. Monitoring placenta during pregnancy                                                    b. Oxygenation of the brain and other various organs                              c. Cancer diagnostics based on the density of angiogenesis
          microvasculature and hypoxia of tumors (breast, etc)
  4. Detection and diagnostics of various cancers, lymph nodes
  5. Image-guided surgery: cancer, spine, vasculature, cosmetic
  6. Monitoring 3D temperature in the course of minimally invasive thermal therapy of cancer

MAESTRO-HR

Universal Premium Imaging System for vasculature, microvasculature, and measurement of SO2

  1. Spatial resolution: from 0.3mm for deep tissue (up to 50 mm) imaging to 0.05mm for subsurface (up to 8 mm) imaging
  2. Temporal resolution from 20 fps (OAT) to 300 fps (plane wave USI)
  3. Contrast/Sensitivity to optical absorption: dma~0.03/cm.
  4. Spectral imaging from 660 nm to 2300 nm for detection of arteries, veins and nerves and molecular imaging of contrast agents.
  5. Monitoring temperature distribution with video rate and precision of better than 0.50C.
  6. High-end ultrasound functions of A,B,C,M modes, color and power Doppler, shear wave elastography, and dynamic microvasculature, plane wave cardiac imaging, vector blood flow imaging of ultrasound contrast agents.
  7. Functional imaging of [SO2] by optoacoustic tomography.

MicroVascular Diseases

Global Health Problems: 18 Million people die every year prematurelyfrom Vascular Diseases because safe, accurate and inexpensive methods of early detection are not currently available.

Shortcomings of MRI

  • Too expensive - impractical for screening
  • Limited to visualizing only major blood vessels not micro-vessels
  • Requires toxic contrast agent
  • No measure of blood oxygen saturation
  • Requires interpretation by trained doctor

TomoWave has developed breakthrough optoacoustic ultrasound solutions to address these critical unmet needs

  • Tomowave – Maestro
  • Tomowave – Maestro

    Brain Vasculature

  • Tomowave – Maestro

    Foot Vasculature

*Foot vasculature image is a courtesy of our partner Prof. Chulhong Kim, POSTECH and Opticho (S. Korea)

Maestro-HR Ultrasonic and Optoacoustic Probes

High Frequency Probes

MODEL TYPE FREQUENCY APPLICATIONS
TWHF-65
LINEAR
65-35 MHz
Embryos, microvasculature, rat skin, zebrafish, mouse and rat eye anatomy
TWHF-42
LINEAR
42-18 MHz
Mouse, rat cardiovascular abdomen, reproductive system, rabbit eyes
TWHF-22
LINEAR
22-14 MHz
Rat, Rabbit cardiovascular, abdominal

Deep Tissue Imaging Probes

MODEL TYPE FREQUENCY APPLICATIONS
TWDT-14-F
LINEAR
14-6 MHz
Rat, Rabbit cardiovascular, abdominal, mouse brain
TWDT-11-F
LINEAR
11-4 MHz
Large animal abdomen, rat and rabbit cardiovascular
TWDT-04-F
PHASED
4-0.1 MHz
Large animal cardiovascular, abdominal, large vasculature

MAESTRO-RD

Universal Premium High-End System combined optacoustic molecular and ultrasound anatomical imaging enabling preclinical research

Maestro-RD provides 256 physical channels and data receive modes, which can be expanded to 512 and 1024 channels.

Bandwidth: 0.15M-27MHz ultrawide frequency range. Software Beamformer supports multiple transmit and receive modes. Ultra-sensitive ultrasonic transducers. Probe combination covers the entire ultrawide range of system sensitivity, 1D and 2D arrays are supported.

Maestro covers all functions of high-end ultrasound, with variety of functional modules: B mode, M mode, C mode, color Doppler, power Doppler, contrast imaging. Plane wave cardiac imaging, vector blood flow imaging. Plane wave ultra-high frame rate blood flow and contrast agent imaging. Shear wave elastography mode.

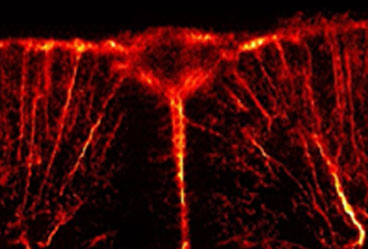

Microbubble tracking in a rodent brain.

Kidney

 High- Resolution Kidney



Liver

High-Resolution Liver

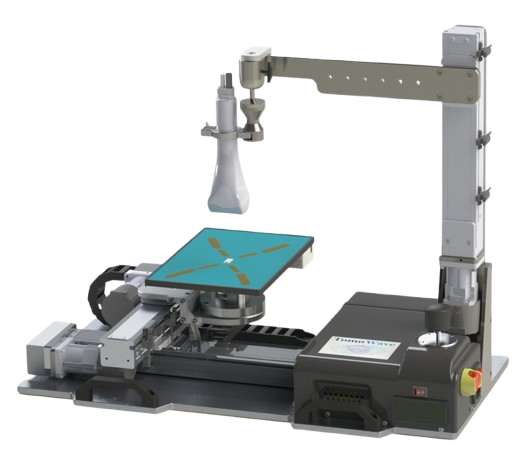

Computer-Controlled
Probe Holder for Maestro

  1. Animal platform with physiological monitoring under adjustable platform temperature: Simultaneously controls EKG, body temperature, and respiratory rhythm of experimental animals in real time.

  2. 3D position adjustment,
    High-strength alloy frame,
    Platforms for mouse and rat

Frequently Asked
Questions

The MAESTRO-MD device by Tomowave represents a cutting-edge advancement in biomedical imaging, integrating multi-modal technology to provide comprehensive diagnostic insights. Designed for clinical and research applications, MAESTRO-MD combines optoacoustic (photoacoustic) and ultrasound imaging in a single, non-invasive system, enabling high-resolution visualization of tissue structure and function in real time.

What is the MAESTRO device, and what makes it unique?

MAESTRO is a multi-modal imaging system developed by Tomowave that combines optoacoustic (photoacoustic) and ultrasound imaging technologies. Its unique integration allows for simultaneous visualization of both anatomical structures and functional information—such as blood oxygenation and molecular content—in real time, providing a comprehensive view of biological tissues.

What are the main clinical or research applications of the MAESTRO device?

The MAESTRO system is designed for a wide range of applications, including cancer detection and monitoring, assessment of vascular health, imaging of inflammatory conditions, and evaluation of tissue response to therapies. Its non-invasive nature and functional imaging capabilities make it valuable for both clinical diagnostics and biomedical research.

How does MAESTRO improve diagnostic accuracy compared to traditional imaging methods?

By combining ultrasound with optoacoustic imaging, MAESTRO provides both structural and molecular-level information in a single scan. This dual-modality approach enables more accurate detection of abnormalities, earlier diagnosis, and better monitoring of treatment outcomes—surpassing the limitations of imaging systems that rely solely on anatomical data.

Is the MAESTRO device safe for patients and research subjects?

Yes, MAESTRO is designed with safety in mind. It uses safe levels of near-infrared laser light and non-ionizing ultrasound energy, making it non-invasive and free from the risks associated with ionizing radiation. This makes it suitable for repeated imaging sessions and long-term monitoring.

Request a Demo

High-res, high-contrast images of your mouse model with 80% discount.

See how Tomowave can elevate your biomedical imaging research.
